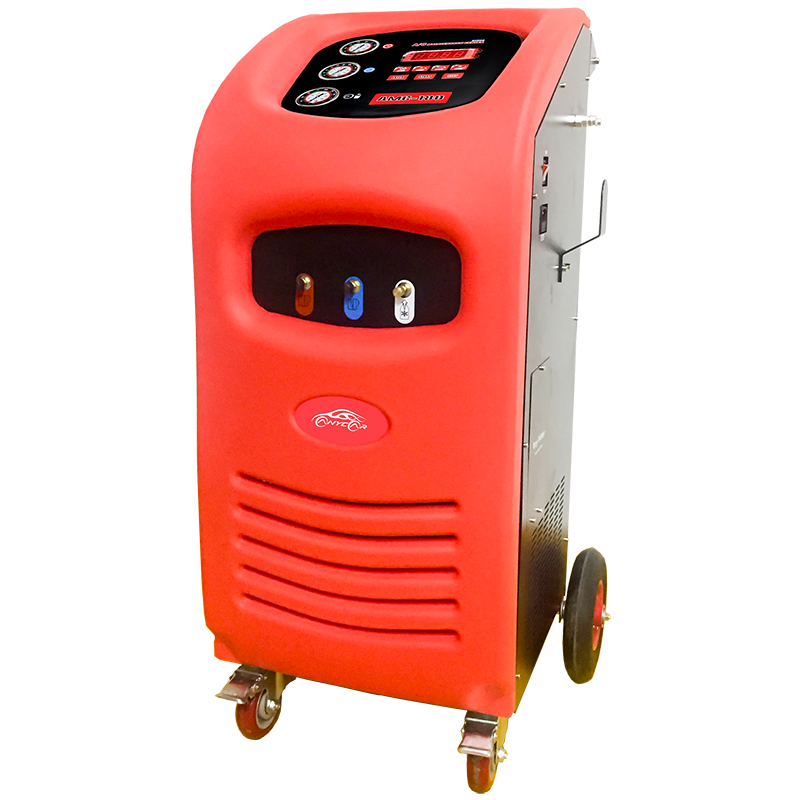

AMC-180N A/C Service Station

1、 Features

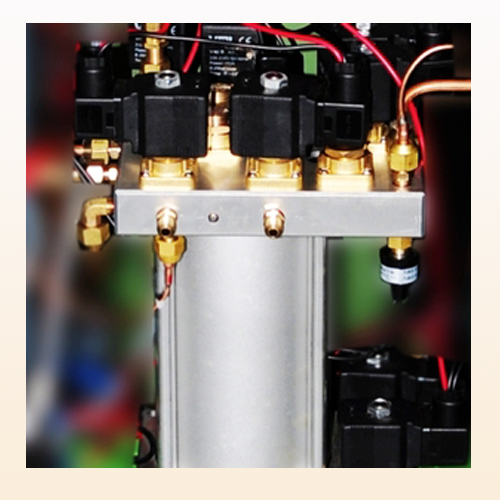

1)         All functions running are controlled by solenoid valves.

2)         Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

3)         Easy to operate with the concise operating interface.

2、 Specifications

1)         Working conditions:

Ambient temperature: 0~50°C

Relative humidity: ＜85%

2)         Voltage input: □AC220V±10％~50Hz   □AC110V±10％~60Hz  □AC220V±10％~60Hz

3)         Compressor：12.12cm³

4)         Vacuum pump: 7.2 m³/h，5Pa

5)         Load cell: ±10g

6)         Tank:12L

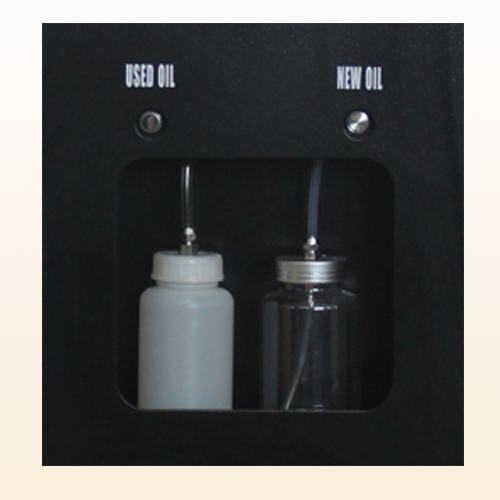

7)         New Oil bottle: 250ml

8)         Used Oil bottle:500ml

9)         Working pressure: max. 20bar

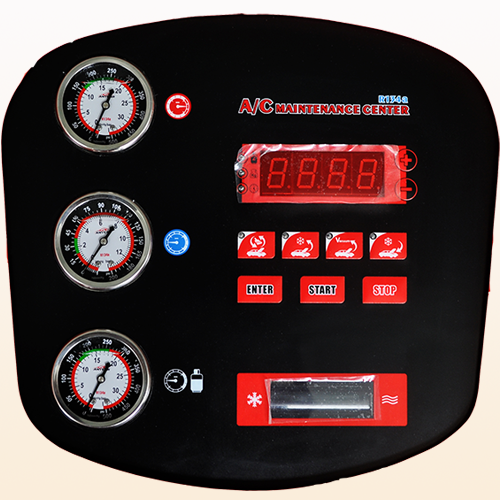

10)       HP gauge: -1bar~3.5MPa

11)       LP gauge: -1bar~2.0MPa

12)       Tank pressure gauge: -1bar~3.5MPa

3. Functions

1) Primary functions

A.         Recovery/Recycling

B.         Auto./Manual used oil discharging

C.         Vacuum

D.         New oil filling

E.         Recharging

2) Subsidiary functions

A.         Refrigerant supplying

B.         Load cell calibration

C.         Parts checking

D.         Maintenance procedure for dry filter

E.         Alarms

F.         Parameters setting

G.        Parameters inquiring
