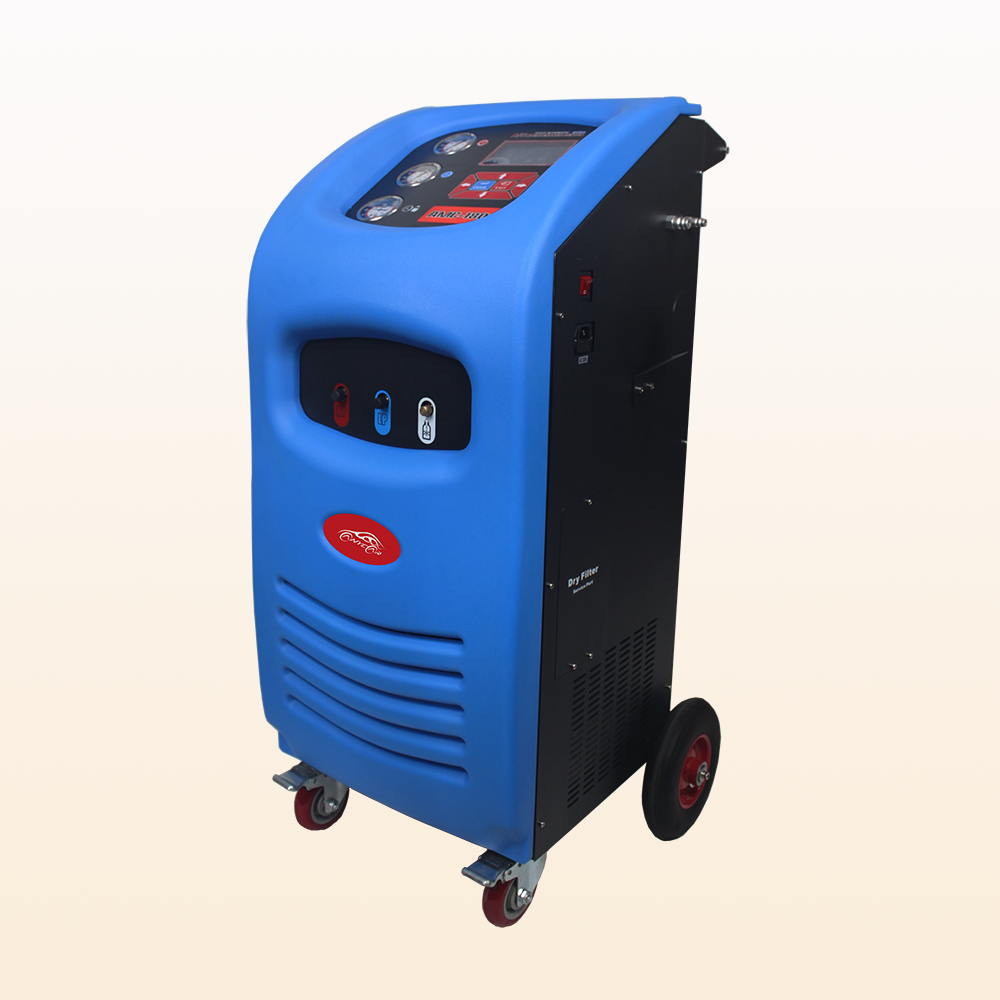

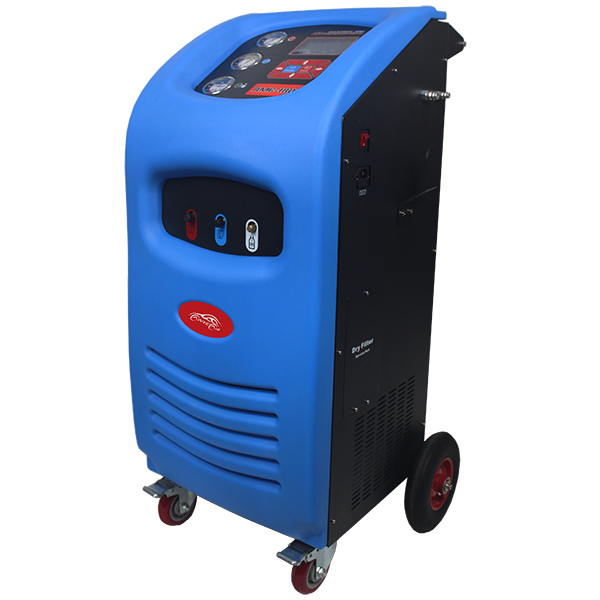

AMC-180AN-YF A/C Service Station

1、Features

1)         Fully automatic, easy to operate.

2)         Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process.

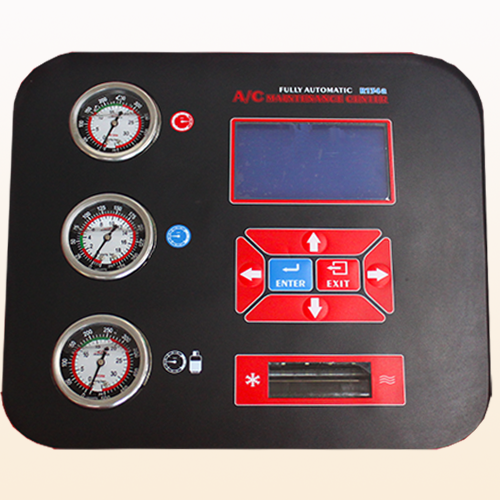

3)         Vertically installing the HP & LP gauges let the operator be able to observe the pressure parameters timely even in the car.

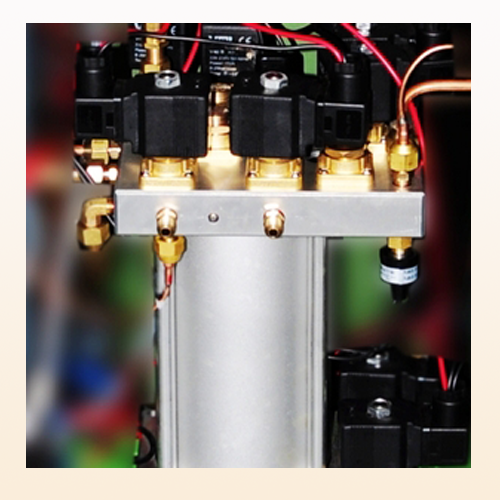

4)         Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

5)         Easy to operate with the concise operating interface.

6)         Designed with large size LCD.

7)         Database.

8)         Program and database can be updated.

9)         With printer.

2、 Specifications

1)         Working conditions:

Ambient temperature: 0~50°C

Relative humidity: ＜85%

2)         Voltage input: □AC220V±10％~50Hz   □AC110V±10％~60Hz  □AC220V±10％~60Hz

3)         Compressor：12.12cm³

4)         Vacuum pump: 7.2m³/h，5Pa

5)         Load cell for tank: ±10g

6)         Load cell for oil bottle: ±5g

7)         Tank:12L

8)         New Oil bottle: 250ml

9)         Used Oil bottle:500ml

10)       LCD display: 240*128

11)       Working pressure: max. 20bar

12)       HP gauge: -1bar~3.5MPa

13)       LP gauge: -1bar~2.0MPa

14)       P gauge: -1bar~3.5MPa

3、Functions

1) Primary functions

A、   Automatic recovering/recycling

B、   Automatic/manual used oil drain

C、   Automatic vacuum

D、   Automatic/manual new oil injection

E、   Automatic recharging with load cell

F、   Auto mode

G、  Database

2) Subsidiary functions

A、   Parameter setting

B、   Supply refrigerant

C、   Electric scale calibration

D、   Maintenance procedures (dry-filter exchange, vacuum pump maintenance)

E、   Printer checking

F、    System inquiry

G、   Equipment info

H、   Help
