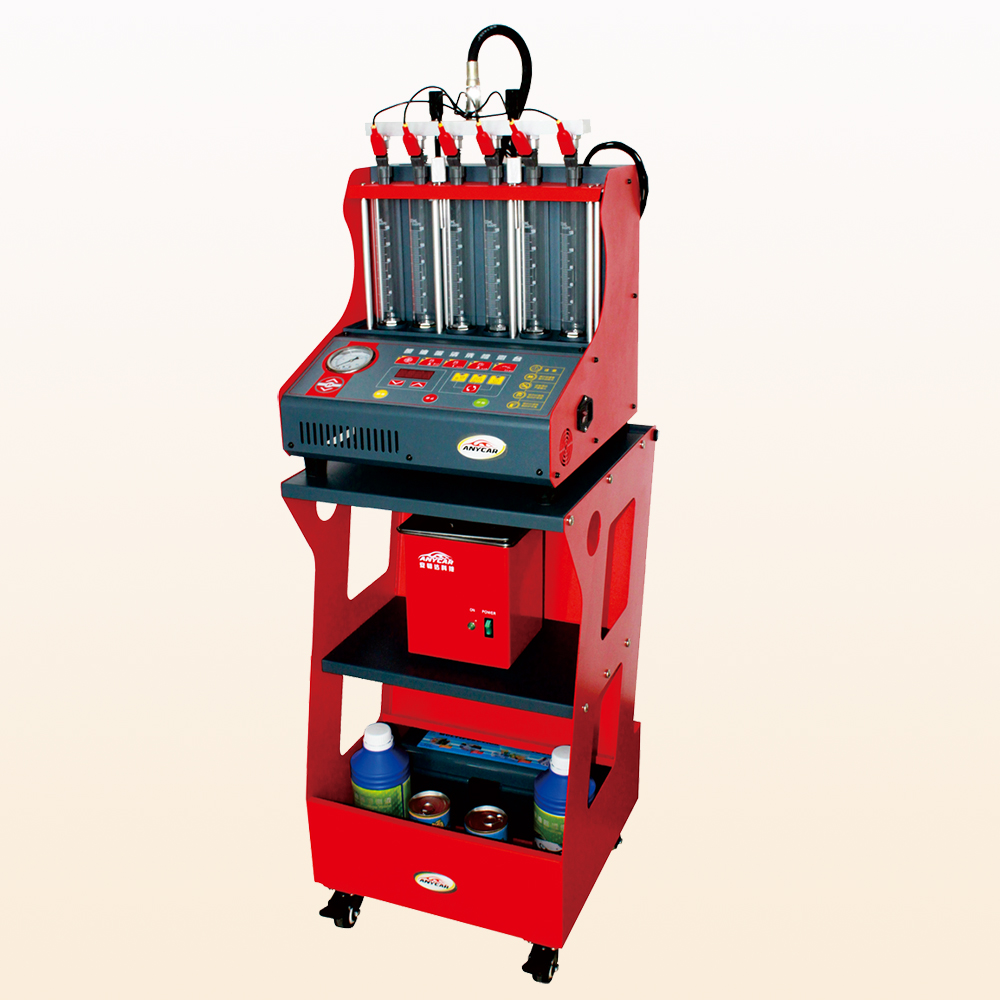

IMT-610N Injector Cleaner & Tester
1、Features
1) Adopting the powerful ultrasonic cleaning technology, the equipment offers complete cleaning to the injectors.
2) Fuel pressure control through microcomputer offers stable pressure control and large adjustable range, which is suitable for all EGI vehicles and can help to achieve automatic cleaning and testing of injectors.
3) With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors and real-time monitoring of the dynamic values.
4) Automatic fuel draining through preset programs for some test items. Test liquid/detergent can also be drained by pushing a button on the control panel after the test.
5) Adopting humanization design can make the system pressure fast restored to the default values.
2、Functions

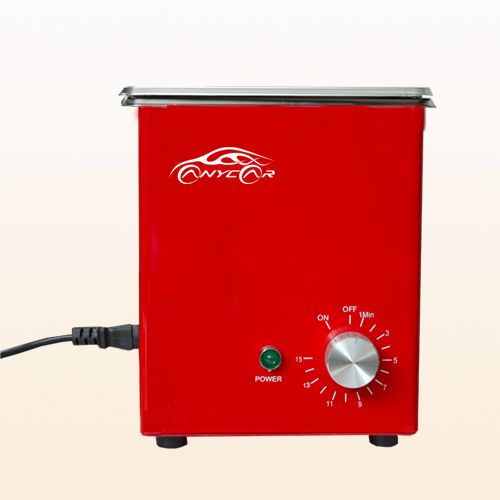

1) Ultrasonic cleaning
2) Uniformity test
3) Spray-ability test
4) Leakage test
5) Injecting flow test
6) Auto. Mode test
7) On-vehicle cleaning (optional)
8) RPM setting & real-time adjustment
9) PW setting & Real-time adjustment
10) Time setting
11) Auto. Drain
12) Be used for Motorcycle’s injector. (optional)
3、Specifications
1) Power supply: AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
2) Input power: 230W
3) Ultrasonic cleaner power: 100W
4) Simulated RPM range:100～9900rpm, step:100rpm
5) Time range: 60～5400s, step: 60s
6) Pulse width: 0.5～25ms,step: 0.1ms
7) Fuel tank capacity: 4000ml
8) Temperature:-10℃~+40℃
9) Relative humidity:＜85%
10) Intensity of outer magnetic field:＜400A/m
11) No naked flame within2m.
12) Cabinet: combined type
IMT-410N, IMT-610N and IMT-810N are similar.
