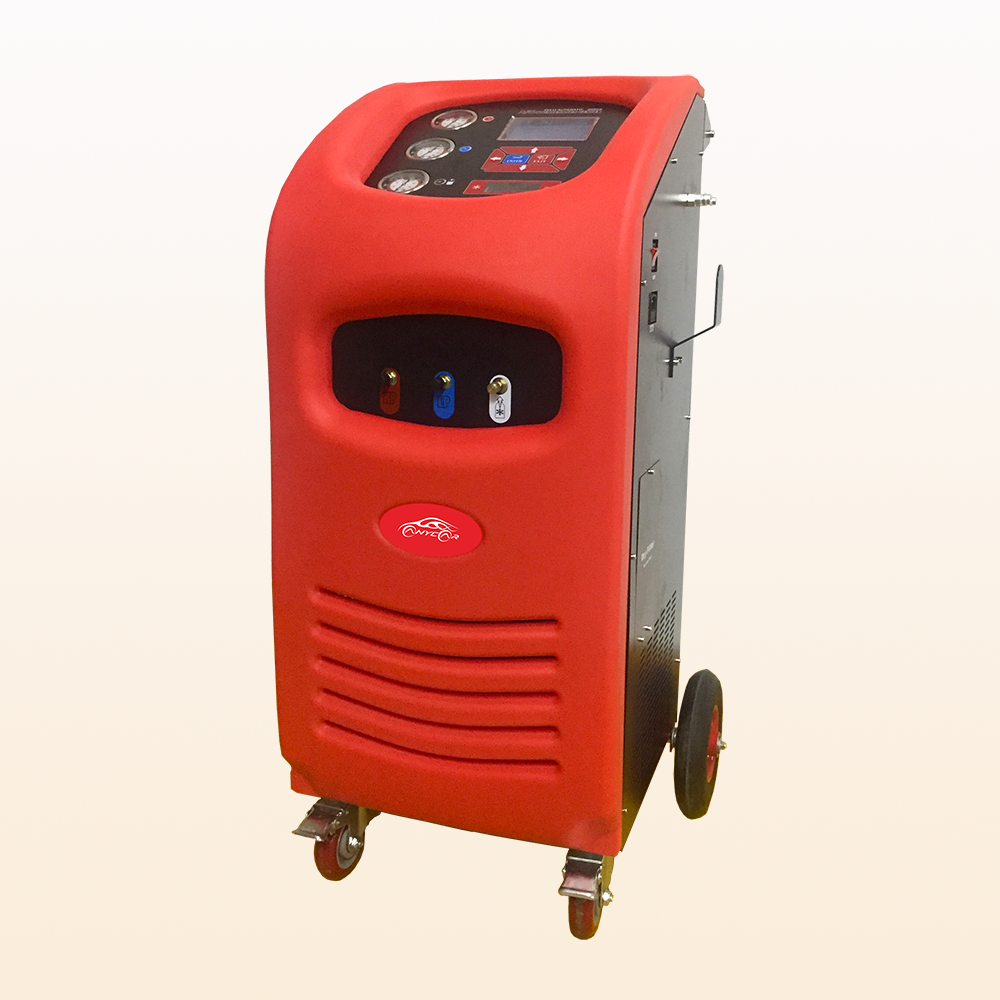

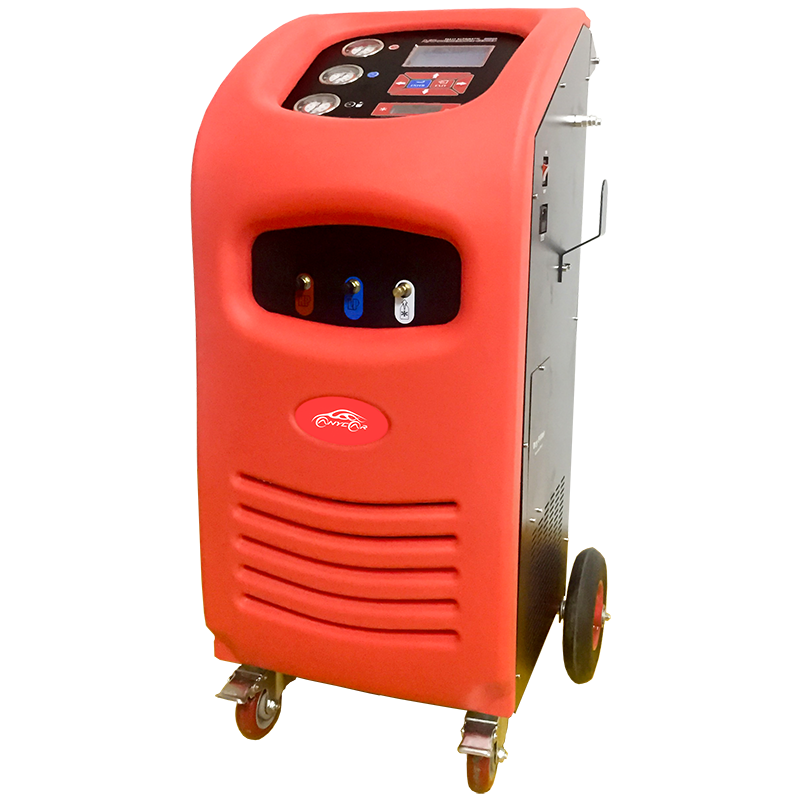

AMC-880N A/C System Maintenance Center

1、 Features

1)         Fully automatic, easy to operate.

2)         Internal pipeline of A/C system flushing, effectively cleared the internal greasy and fouling, to restore the A/C system performance.

3)         With forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect.

4)         Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process.

5)         Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid.

6)         Easy to operate with the concise operating interface.

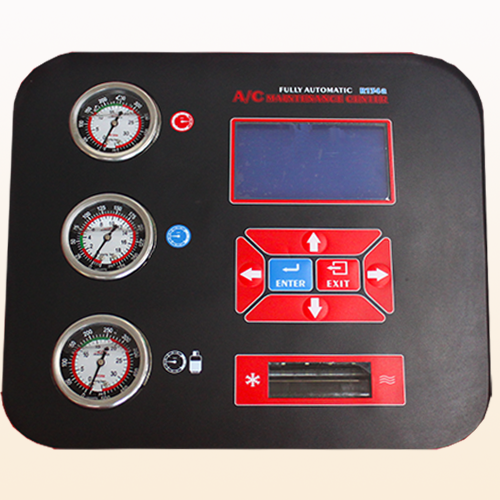

7)         Designed with large size LCD.

8)         Database.

9)         With printer.

2、 Specifications

1)         Working conditions:

Ambient temperature: 0~50°C

Relative humidity: ＜85%

2)         Voltage input: □AC220V±10％~50Hz   □AC220V±10％~60Hz  □AC110V±10％~60Hz

3)         Compressor：12.12cm³

4)         Vacuum pump:7.2m³/h，5Pa

5)         Load cell for tank: ±10g

6)         Load cell for oil bottle: ±5g

7)         Tank:12L

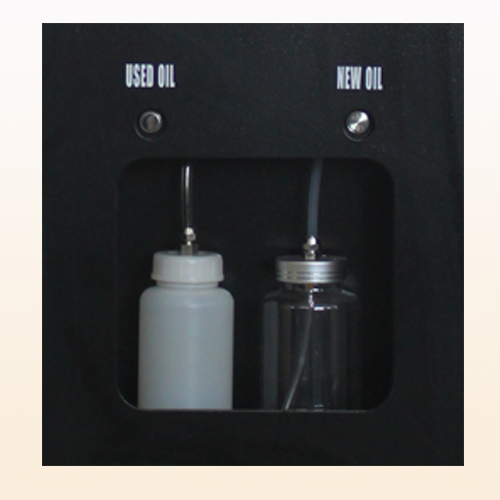

8)         New Oil bottle: 250ml

9)         Used Oil bottle:500ml

10)       LCD display: 240*128

11)       Working pressure: max. 20bar

12)       HP gauge: -1bar~3.5MPa

13)       LP gauge: -1bar~2.0MPa

14)       TP gauge: -1bar~3.5MPa

15)       Backlighting：LED

3、Functions

1) Primary functions

A、   Automatic flushing

B、   Automatic recovering/recycling

C、   Automatic/manual used oil drain

D、   Automatic vacuum

E、   Automatic/manual new oil injection

F、    Automatic recharging with load cell

G、   Auto mode

H、   Database

2) Subsidiary functions

A、   Parameter setting

B、   Supply refrigerant

C、   Electric scale calibration

D、   Maintenance procedures (dry-filter exchange, vacuum pump maintenance)

E、   Printer checking

F、    System inquiry

G、   Equipment info

H、   Help
