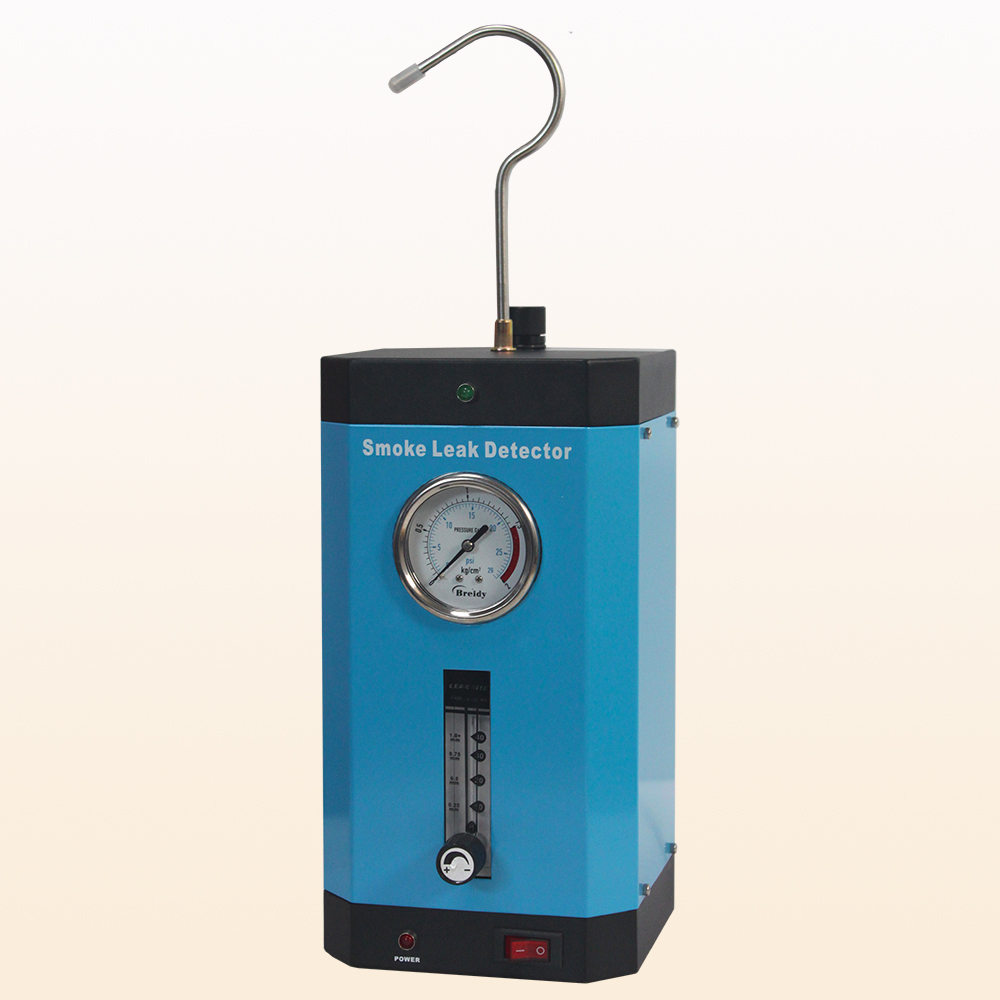

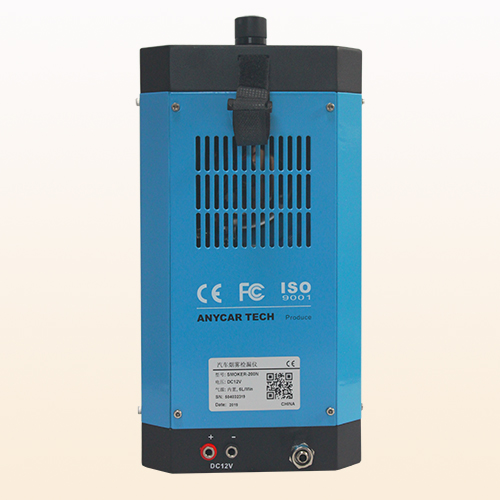

SMOKE-200Pro Smoke Leak Detector

1、Features

Smoke-200Pro Series Smoke Leak Detector is the economic automatic pipeline leakage detection equipment developed by our company, which conforms to SAE test standards. It build smoke fast with large volume, which can effectively help maintenance personnel improve work efficiency. It is a better Smoke Leak Detection products than others.

2、Functions

1)         Air test mode

2)         Pressure-holding test mode

3)         Smoke test mode

4)         EVAP system test（only EVAP model）

5)         Turbo system test（only TURBO model）

3、Specifications

1)         Power：DC12V/6A，（power adaptor AC100-240V/50-60Hz input optional）。

2)         Flow amount： 10-25L/min

3)         Air： internal compressor pump （customized external air inport）

4)         Test pressure range：

EVAP：15kpa

TURBO：1.2bar

5)         Single refueling volume：30-50ml, with level widown

Oil consumption：about 0.5ml/min（Reference value under laboratory conditions, the actual value will be different according to the using condition.）
