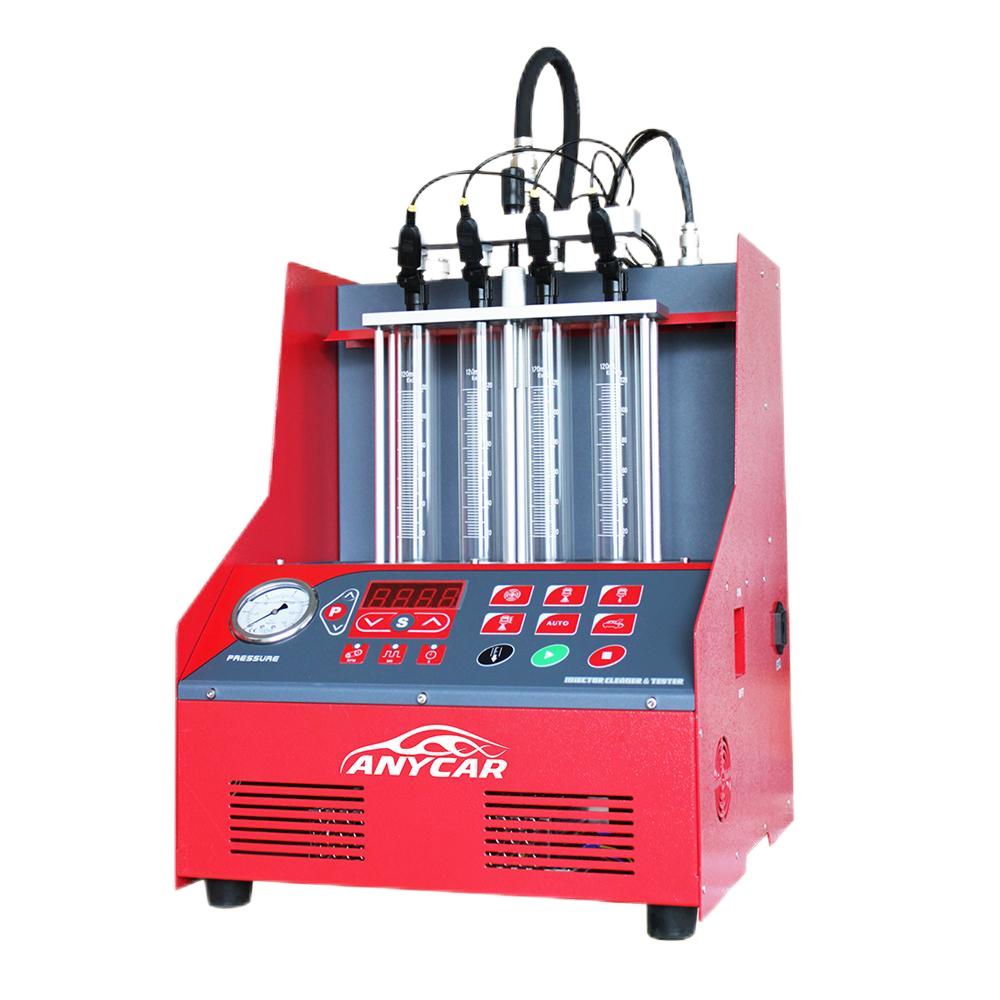

ENC-402A Injector Cleaner & Tester
1、Features
1) Adopting the powerful ultrasonic cleaning technology, the equipment offers complete cleaning to the injectors.
2) Fuel pressure control through microcomputer offers stable pressure control and large adjustable range, which is suitable for all EGI vehicles and can help to achieve automatic cleaning and testing of injectors.
3) With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors and real-time monitoring of the dynamic values.
4) Automatic fuel draining through preset programs for some test items. Test liquid/detergent can also be drained by pushing a button on the control panel after the test.
5) Adopting humanization design can make the system pressure fast restored to the default values.
2、Functions
1) Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2) Uniformity/Spray-ability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3) Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4) Injecting volume test: To check the injecting amount of the injector in 15 seconds of constant injection.
5) Auto. Test: To test injectors by simulating different working conditions.
6) On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.(optional)
3、Specifications
1) Temperature: -10~+40℃;
2) Relative humidity: ＜85%;
3) Intensity of outer magnetic field: ＜400A/m;
4) No naked flame within2m.
5) Main unit power supply: □AC220V±10%, 50/60Hz; □AC110V±10%, 50/60Hz.
6) Main unit power:230W
7) Ultrasonic cleaner power: 100W;
8) Simulated RPM range: 10～9990rpm; step: 10rpm;
9) Time range: 1～9999s;
10) Pulse width: 0.5～25ms; step 0.1 ms;
ENC-402A and ENC-602A are similar.
